Drum size matched to your delivery distance
An 8 m³ drum suits smaller urban pours; 12–14 m³ carries a full plant load in one trip once the haul gets long enough to justify the bigger truck.
Ready-Mix Concrete Delivery Vehicle
Concrete Mixer Truck
Transit mixer drums from 8 to 14 m³, built on a 6×4 chassis and sized to the batching run you actually deliver.
- Drum capacity
- 8 – 14 m³
- Drive
- 6×4
- Feed rate
- ≥ 3 m³/min
- Discharge residual
- ≤ 0.5%

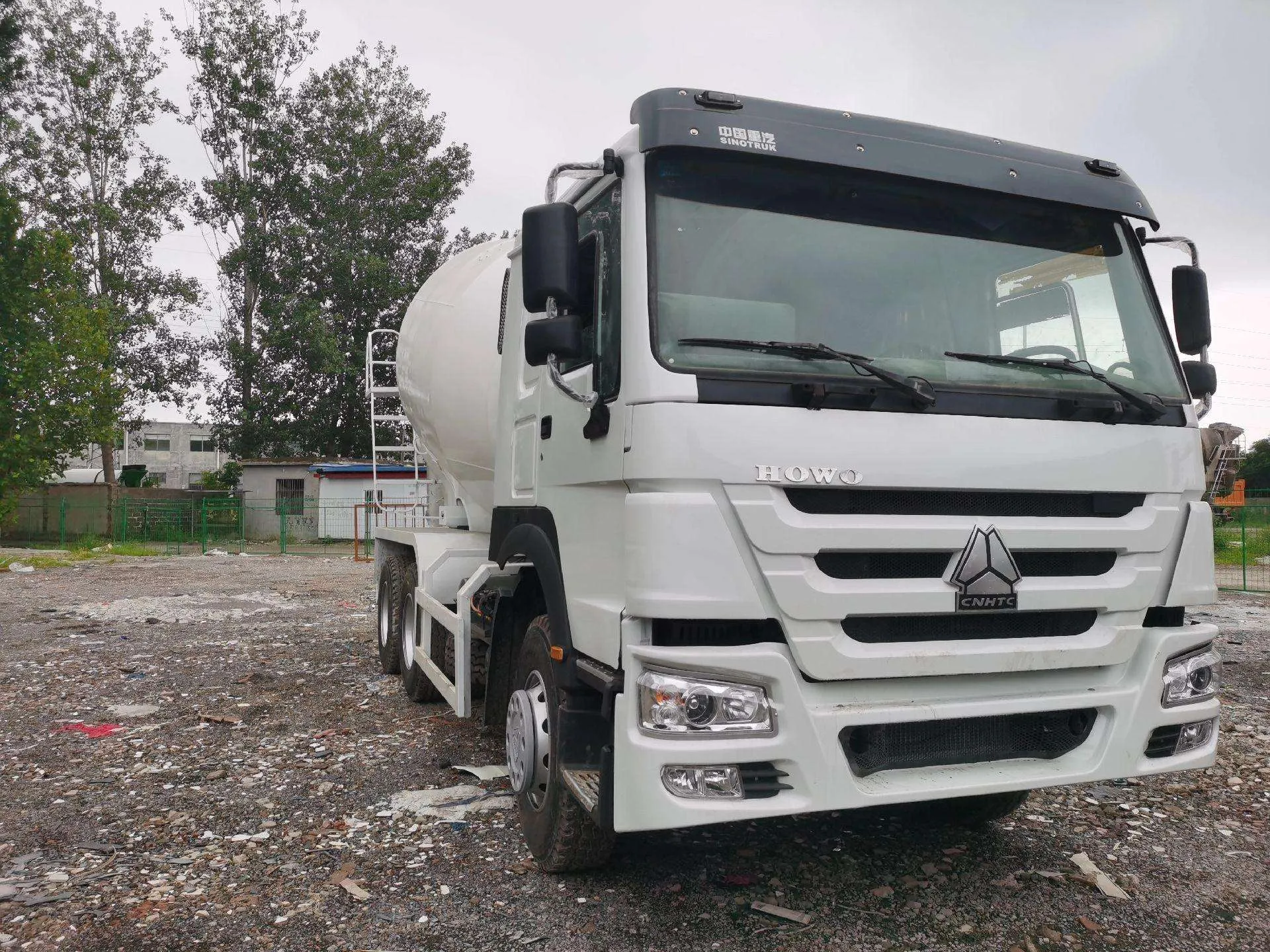

Concrete mixer trucks (transit mixers) for ready-mix delivery
A rotating-drum truck that keeps concrete workable on the drive from the batching plant to the pour, on a chassis your drivers already know.
The drum on our representative 10 m³ build is driven by a hydraulic pump and motor through a dedicated reducer, holding continuous rotation at a fixed mounting angle so the mix does not separate. Feed rate runs 3 m³ per minute and above, discharge close to 2 m³ per minute, with residual under 0.5% — the drum empties close to fully rather than building up set concrete inside it. Discharging range swings a full 180°.
Drum size follows delivery volume: an 8 m³ mixer suits smaller urban pours; a 12–14 m³ drum on a heavier chassis covers a full plant load in one trip on longer hauls. Every unit ships as an export order, drum's pump, motor and reducer brand set before it leaves the yard. A mixer ordered alongside a concrete pump truck covers both delivery and placement.
Every drum runs a full charge-and-discharge cycle on the line before crating, pump, motor and reducer checked under load, not just spun empty.
Specifications
Concrete Mixer Truck — technical data
Representative 10 m³ build shown below (Dongfeng chassis, 6×4, Cummins ISLe375-class engine). Final drum size, chassis and engine are confirmed per order; see the capacity table below for the other tiers we build.
Chassis
| Chassis brand / model | Dongfeng EQ5252GJBT, 6×4 |
|---|---|
| Overall dimensions (L×W×H) | 8,800–9,990 × 2,500 × 3,990 mm |
| Wheelbase | 3,650 / 3,800 / 4,000 + 1,350 mm |
| Gross vehicle weight | 25,000 kg |
| Curb weight | 14,115 kg |
| Rated payload | 10,690–10,755 kg |
| Fuel tank capacity | 350 L, steel |
| Max speed | 75 km/h |
Engine & driveline
| Engine | Cummins ISLe375-class, 6-cylinder in-line diesel |
|---|---|
| Displacement | 8.9 L |
| Rated power | 276 kW |
| Emission standard | Euro IV |
| Transmission | 8- or 9-speed, Fast |
| Tyre size | 12.00R20 |
Mixing drum
| Drum capacity | 10 m³ (8 – 14 m³ range across tiers) |
|---|---|
| Feed rate | ≥ 3 m³/min |
| Discharge rate | ≥ 2 m³/min |
| Discharging range | 180° |
| Discharge residual ratio | ≤ 0.5% |
| Hydraulic pump / motor | Sauer or Eaton |
| Reducer | PMP, Bonfiglioli or ZF |
| Water tank capacity | 400 L, air-pressure supply |
Drum capacity tiers
| Drum capacity | Drive | Engine | Typical use |
|---|---|---|---|
| 8 m³ | 6×4 | Yuchai, ~240 hp | Small pours, urban sites |
| 10 m³ | 6×4 | Cummins ISLe375-class | Standard batching-plant delivery |
| 12–14 m³ | 6×4 | WD615-class, 336 hp | Full-load long-haul delivery |
How these mixer trucks are built
Discharge residual under 0.5%
Drum geometry and reducer are matched so the load discharges close to fully rather than leaving concrete to harden and build up inside.
Parts your workshop can already source
Chassis are Dongfeng, HOWO or Sinotruk, and the pump, motor and reducer are Sauer, Eaton, PMP, Bonfiglioli or ZF — all serviced in most export markets.
Same export process as the rest of the fleet
Left- or right-hand drive, your market's emission standard, and reducer and pump brand matched to preference, set before the unit leaves the yard.
Where these mixer trucks work
- Ready-mix concrete delivery from a batching plant to site, keeping the load workable in transit.
- Infrastructure and road projects needing a steady supply run rather than a single large pour.
- Commercial and residential sites, where an 8 m³ mixer manoeuvres into tighter urban access.
- Sites also running a concrete pump truck, feeding the pump's hopper directly.
Frequently asked questions
What drum sizes do you build?
Concrete mixer trucks are built from around 8 m³ up to 12–14 m³, all on a 6x4 chassis. An 8 m³ drum suits smaller urban pours; 12–14 m³ suits full batching-plant loads on longer hauls. Tell us your typical pour size and haul distance and we will recommend the tier.
How is the discharge residual kept low?
The drum geometry, mounting angle and reducer are matched so the load discharges close to fully on each cycle, with a residual ratio of 0.5% or better on our representative build. A drum that leaves concrete inside loses usable capacity on every load after the first.
Which chassis brands can the drum be mounted on?
Dongfeng, HOWO and Sinotruk are all in regular production for this body. The choice usually comes down to which brand has a parts counter near your depot, since matching the drum to a chassis your fleet already runs keeps servicing simple.

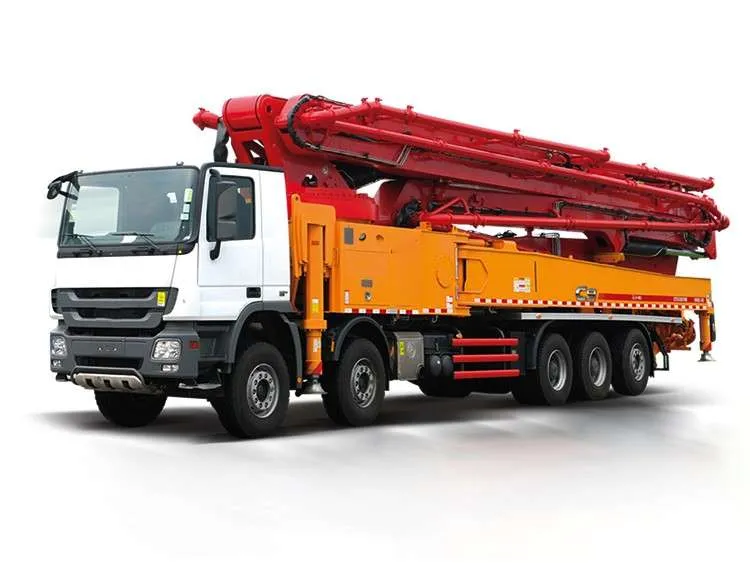

Can the mixer be ordered together with a pump truck?
Yes. If you already have a concrete pump truck order with us, a mixer truck can be added to the same production run and shipment, which is usually simpler than sourcing the two separately.
Also from our production line
Tell us the drum size and haul distance
Send the drum capacity you need, the distance from plant to site, and your destination port. We come back with a configuration sheet and an FOB or CIF price, usually within 72 hours.
