Rated load matched to your material
750 kg suits lighter, confined-space work; 1,230 kg suits outdoor handling where lift capacity matters more than turning radius.
Compact Material-Handling Machine
Skid Steer Loader
A compact wheeled loader that turns inside its own footprint, sized in rated load rather than sold as one fixed capacity.
- Rated load
- 750 – 1,230 kg
- Operating weight
- 3.1 – 3.7 t
- Bucket capacity
- 0.35 – 0.6 m³
- Attachments
- Quick-attach compatible
Skid steer loaders for tight-access loading, clearing and yard work
A compact wheeled loader that steers by driving the left and right wheels at different speeds, turning inside its own length where a larger loader cannot fit.
The representative 750 kg build carries a 0.45 m³ heaped bucket and delivers 18 kN of breakout force from a 36.8 kW water-cooled diesel, hydraulic flow at 62.5 L/min driving the loader arm or any quick-attach implement. A front turning radius under 1.2 m without the bucket lets it work aisles and yard corners a larger loader has to back out of.
Rated load runs from 750 kg on the compact end up to 1,230 kg, with operating weight scaling from about 3.1 t to 3.7 t across the range. Every unit ships as an export order, quick-attach plate matched to the buckets, forks or sweeper attachments you already run. A skid steer loader ordered alongside a backhoe loader covers tight-access handling and larger digging.
Every unit is cycled through a full lift, tilt and drive sequence under hydraulic load before it leaves the line, quick-attach plate tested against a mounted implement.
Specifications
Skid Steer Loader — technical data
Representative 750 kg build shown below. Final rated load, bucket size and engine are confirmed per order; see the capacity table below for the other tiers we build.
Machine
| Rated load | 750 kg |
|---|---|
| Tipping load | 1,500 kg |
| Operating weight | 3,140 kg |
| Overall dimensions (L×W×H) | 3,270 × 1,807 × 1,970 mm |
| Ground clearance | 183 mm |
| Max travel speed | 14 km/h |
| Front turning radius (without bucket) | 1,183 mm |
Engine & hydraulics
| Engine | Xinchai 4D27G31, water-cooled diesel |
|---|---|
| Rated power | 36.8 kW (49.3 hp) at 2,500 rpm |
| Max breakout force | 18 kN |
| Hydraulic flow rate | 62.5 L/min |
| Hydraulic pressure | 200 bar |
Working
| Bucket capacity (stacking / tiling) | 0.45 m³ / 0.35 m³ |
|---|---|
| Max unloading height | 2,375 mm |
| Max operating height | 3,878 mm |
| Unloading distance | 575 mm |
| Toppling angle | 40° |
Rated load tiers
| Rated load | Operating weight | Bucket capacity | Engine |
|---|---|---|---|
| 750 kg | 3,140 kg | 0.45 m³ | 36.8 kW diesel |
| 1,080 kg | 3,450 kg | 0.6 m³ | 61.3 kW diesel |
| 1,230 kg | 3,700 kg | 0.54 m³ | 63 kW diesel (Euro IIIA) |
How these skid steer loaders are built

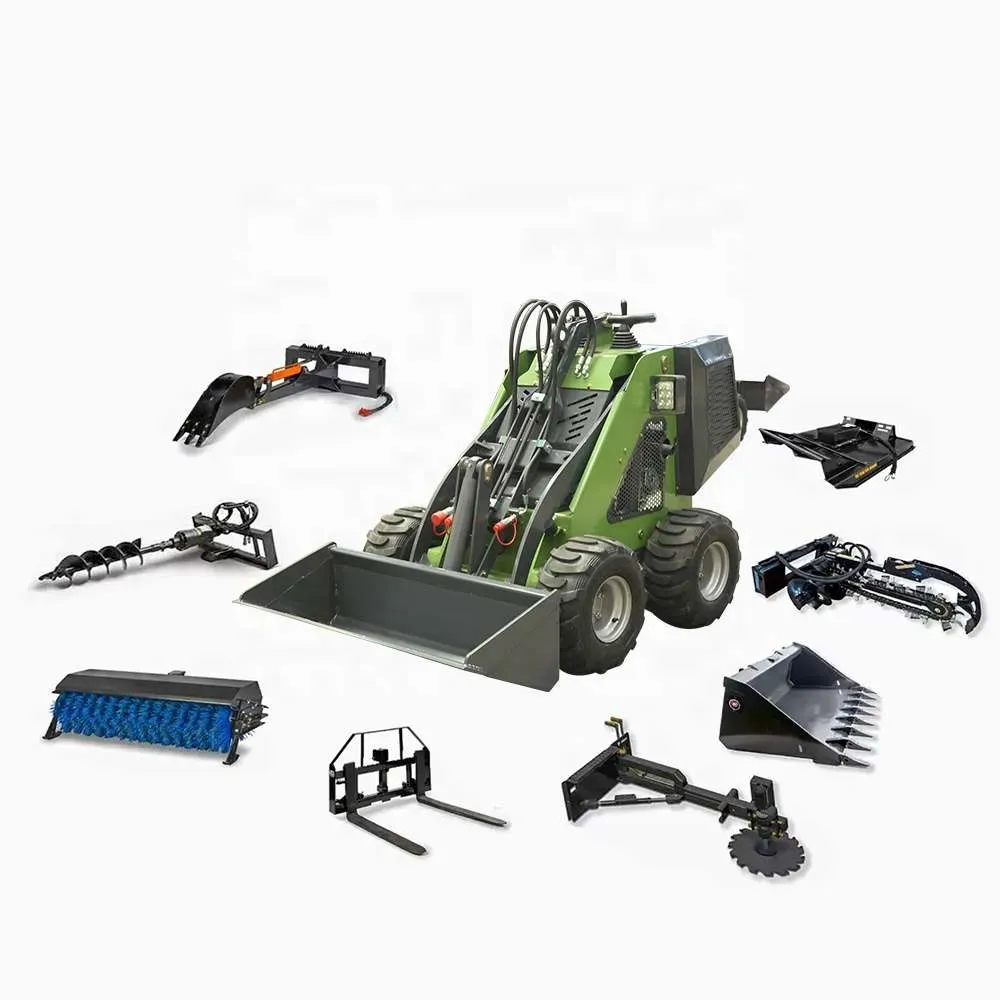

Quick-attach compatible with your implements
The front plate takes buckets, pallet forks and sweeper attachments on a standard quick-attach fitting, covering several tasks with one machine.
Turns inside its own footprint
Skid steering drives the wheels independently, giving a front turning radius under 1.2 m — tighter than a wheel loader or backhoe loader can manage.
Same export process as the rest of the fleet
Left- or right-hand drive, your market's emission standard, and quick-attach fitting matched to your implements, set before the unit leaves the yard.
Where these skid steer loaders work
- Warehouse and yard material handling in aisles a larger loader cannot enter.
- Landscaping and site clearing, switching bucket, fork and sweeper attachments on one quick-attach plate.
- Demolition debris clearing in confined spaces where a larger loader lacks the room.
- Construction sites also running a mini excavator, clearing what it digs.
Frequently asked questions
What rated load sizes do you build?
Skid steer loaders are built from 750 kg up to 1,230 kg rated load, with operating weight scaling from about 3.1 t to 3.7 t across that range. Tell us what you are moving and we will recommend the tier.
Will my existing attachments fit?
The front plate uses a standard quick-attach fitting compatible with most buckets, forks and sweeper attachments. Tell us the attachment brand and fitting you already run when you enquire and we will confirm compatibility before the unit ships.
Wheeled or tracked — which do you build?
Our current range is wheeled skid steer loaders, which turn inside a tighter footprint on hard or semi-hard ground than a tracked machine and cost less to maintain. If a tracked build is a hard requirement for your job, raise it in your enquiry.
Can this be ordered together with other equipment?
Yes. If you already have an order with us for a backhoe loader, mini excavator or one of our trucks, a skid steer loader can be added to the same production run and shipment, which is usually simpler than sourcing it separately.
Also from our production line
Tell us the load capacity and attachments you need
Send the rated load you need, which attachments you already run, and your destination port. We come back with a configuration sheet and an FOB or CIF price, usually within 72 hours.
